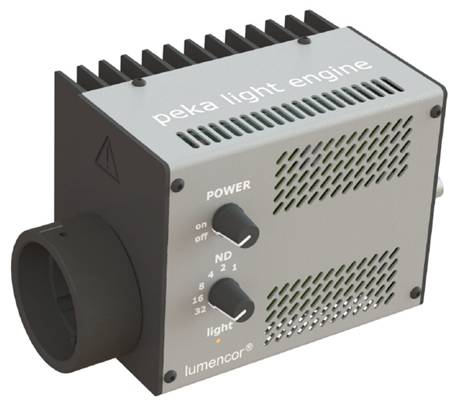

PEKA strong transmitted light source
PEKA couples directly to any major brand microscope and has no fan so produces no vibration. Spectrally pure white light is generated with no harmful UV or NIR. PEKA may be manually operated or electronically triggered for millisecond timing control. The red/yellow/green/blue (RYGB) output is unique in its ability to maintain constant color temperature throughout all gain settings, regardless of output power, no need for neutral density matching and fast on/off. PEKA is a robust illuminator and a powerful solution superior to the traditional 12V100W tungsten-halogen lamp also in unique strong intensity supporting up to 100X Ph & DIC contrast technique.
Sources： White light based on the combined output of multiple sources
Wavelength： Range 450 - 650 nm
Power： 250 mW (support 100X Ph & DIC) or 500mW (support more than 10 people multi-head viewing microscope) white light
Speed： On/off rate > 100 Hz
Light Delivery： Direct mount lamp house to transmission lamp port of any major microscope
Easy to Install： Pre-aligned, simple to mount, no maintenance
Control： TTL on/off trigger of white output
Lifetime： > 20,000 hours with more than 70% initial, maximum intensity
Control Interface： Manual knobs for on/off and electronic neutral density equivalents
TTL via BNC
Power Requirements： 40 W, 24 VDC, 1.7 A
Weight, Dimensions (W x L x H)： ~ 2 kg, 9cm x 10cm x 13 cm
