SOLA strong fluorescent light guide source

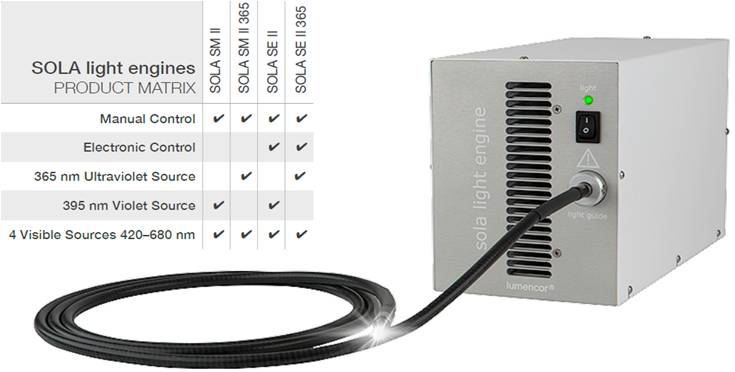

Sola light engines
‣ No Bulbs to replace and align
‣ No Warm-up or Cool-down Times
‣ No Excess heat generation
‣ No “Green Gap” limiting Orange/Red probes
Sources：5 solid-state sources operating simultaneously to produce white light

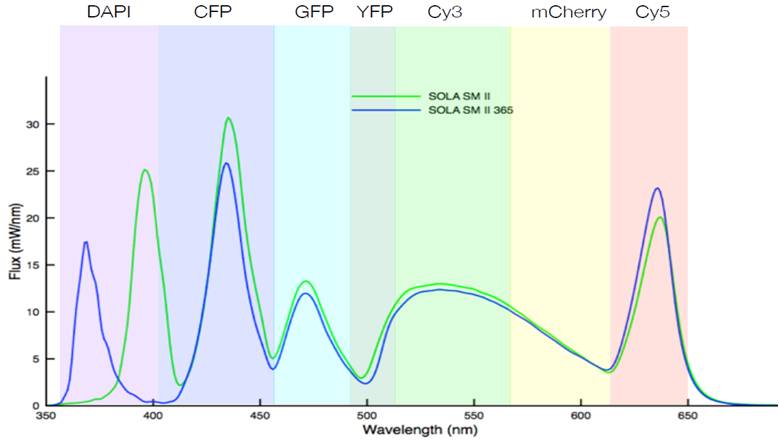

Wavelength Range：380–680 nm (SOLA SM II and SE II) or 350–680 nm (SOLA SM II 365 and SE II 365)
Output Power：~ 3 W white light at output of 3 mm diameter liquid light guide (LLG)*
Light Output：Built-in output adapter for 3 mm diameter LLG* with safety interlock
Light Delivery：LLG output connects to microscope via Lumencor collimator*
Manual Control：Light output switch (front panel) and plug for foot pedal* (rear panel)
Electronic Control：Light output on/off and graduated intensity control via Bluetooth-connected
touchscreen tablet* or USB-connected computer. TTL triggered on/off switching. Adjustable in 1% increments 0–100% .
Lifetime：>20,000 hours (Items marked (*) are optional)
Power Requirements：120 W, 24 VDC, 5 A. Power supply and cord included with all orders.
