Digtial camera

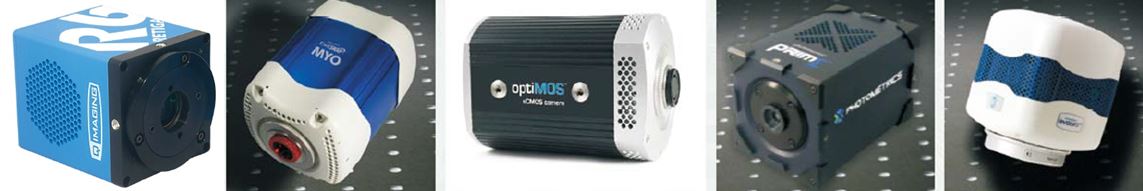

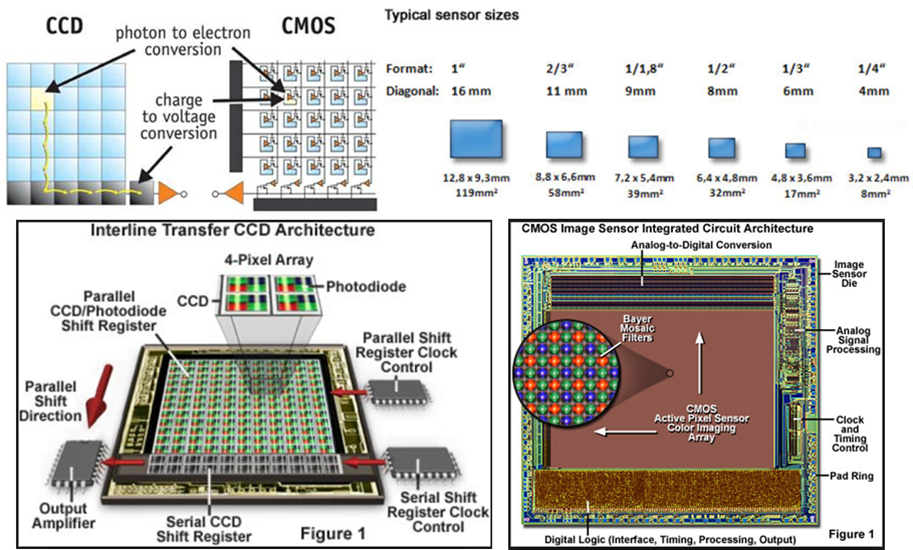

We offer CCD, CMOS, sCMOS & EMCCD cameras:

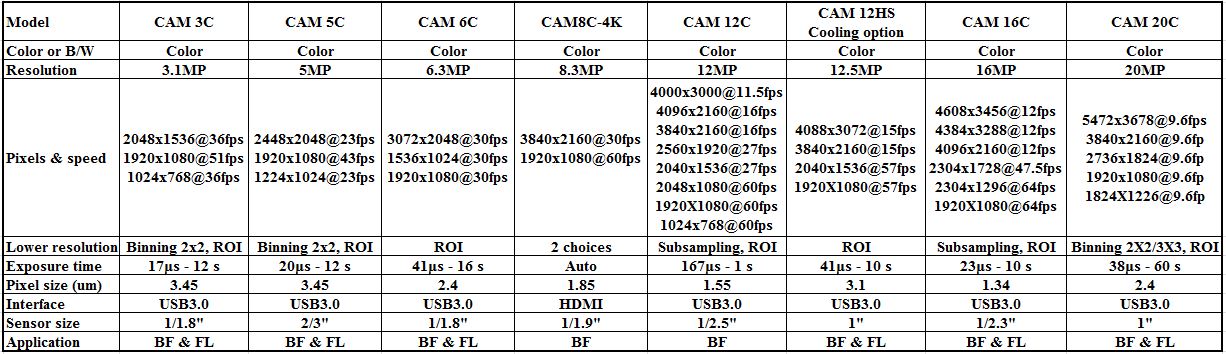

- 5MP or 6MP CCD/CMOS camera: image documentation & low to mid-intensity fluorescent image capture
- 8MP, 10MP, 12MP to 20MP CCD/CMOS camera: high resolution image documentation especially for low magnification requirements

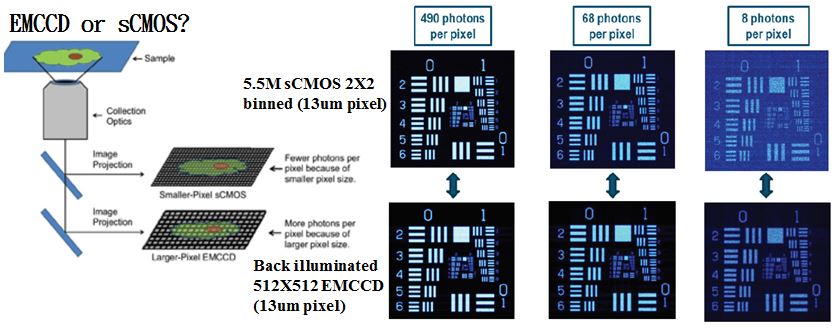

- 2MP, 4MP or 5MP sCMOS camera: high resolution, high speed, high sensitivity and high dynamic range weak fluorescent image capture
- 512X512 or 1MP EMCCD camera: high speed and high sensitivity single molecule fluorescent image capture

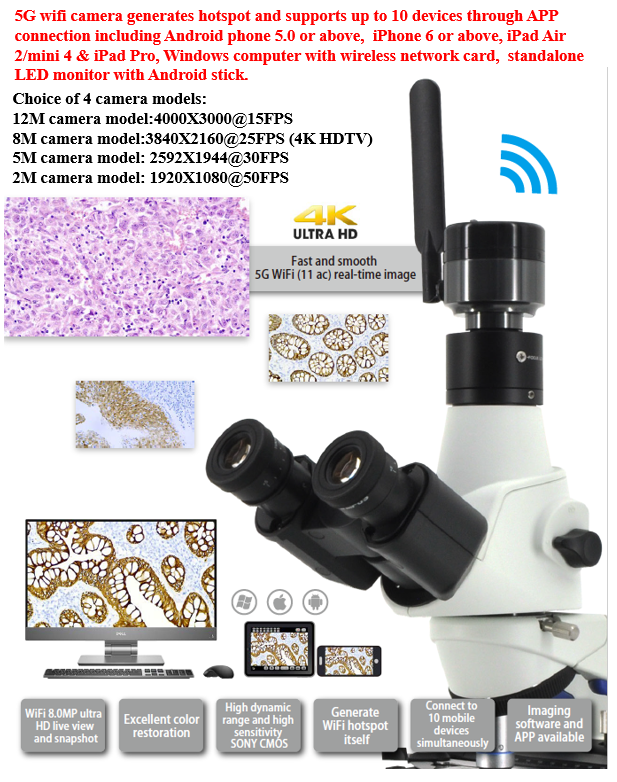

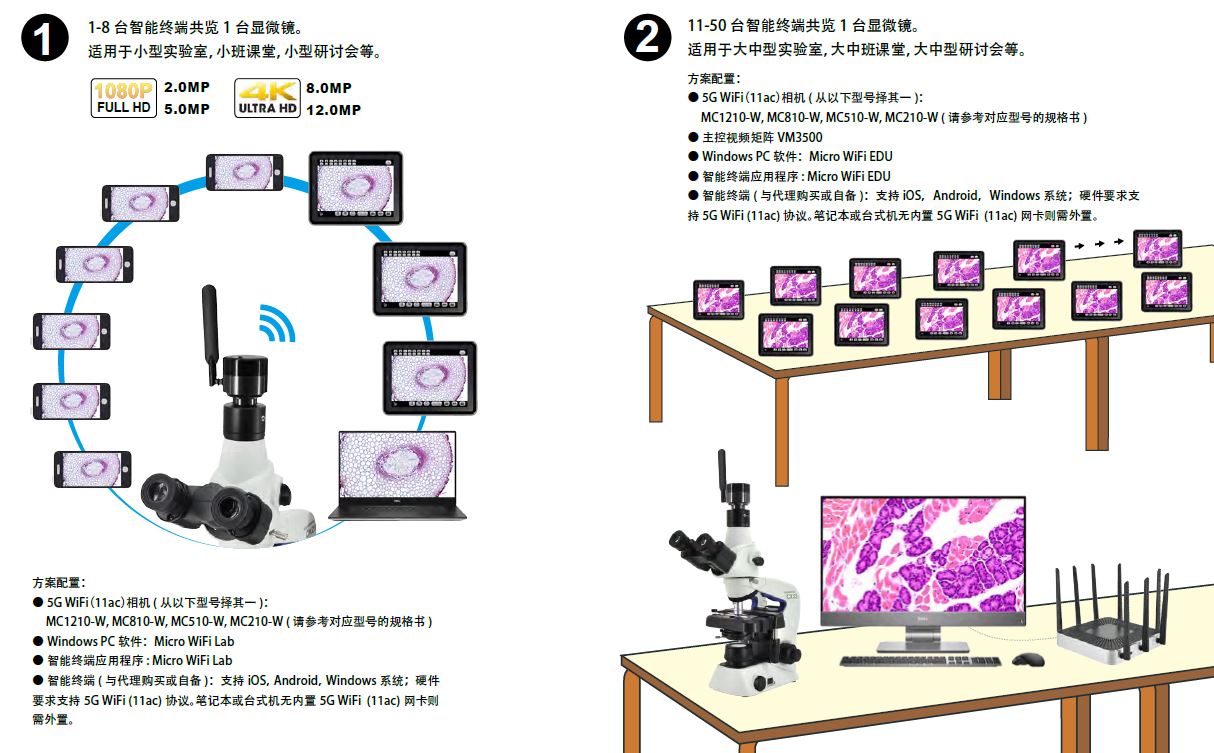

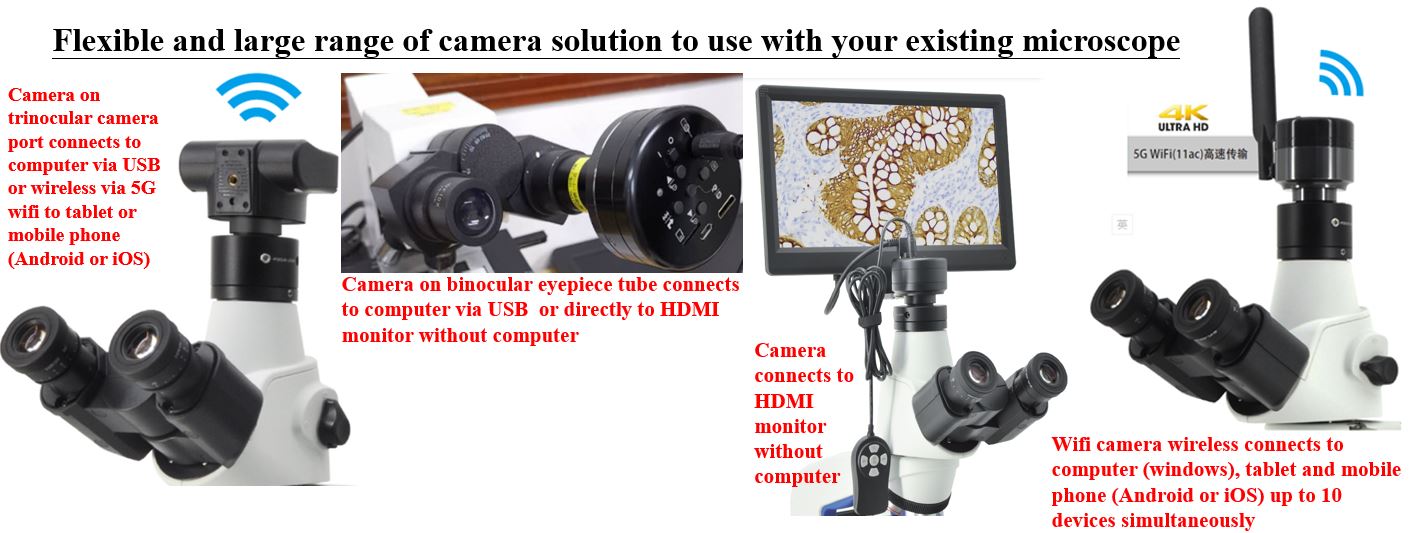

5G Wifi camera in choice of 2M, 5M, 8M & 12M resolution to generate hotspot from the camera itself and through our APP to connect up to 10 devices, including Android phone 5.0 or above, iPhone 6 or above, iPad Air 2/mini 4 & iPad Pro, Windows computer with wireless network card, standalone LED monitor with Android stick. It provides the most flexible solution to maintain the best image quality for your experiment demonstration, teaching, group discussion and training etc... It can replace your microscope with teaching multi-heads and projector for lecture hall image display. The camera itself can support up to 10 devices and an option to add a 5G array port extends the support up to 50 devices best fit for class teaching purpose.
sCMOS Specifications | ||
Format | Pixel Size(um) | Array Size(mm) |
2560x2160 | 6.5x6.5 | 16.6x14 |
2048x2048 | 6.5x6.5 | 13.3x13.3 |
1920x1080 | 6.5x6.5 | 12.48x7.02 |
1608x1608 | 11x11 | 17.69x17.69 |
1200x1200 | 11x11 | 13.2x13.2 |
